Description

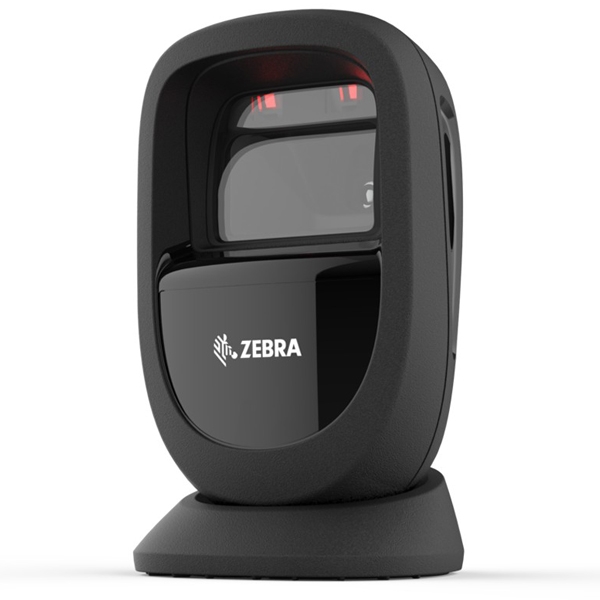

DS9308

FEATURES:

• SCAN IT ALL

With an 800 MHz microprocessor, high-resolution megapixel sensor and exclusive PRZM Intelligent Imaging technology, the DS9308 Series instantly captures barcodes in virtually any condition, on any media. And with industry-leading swipe speeds and the widest field of view in its class, the DS9308 Series can capture barcodes as fast as they are presented.

• INNOVATIVE-DRIVEN DESIGN

With a near-zero footprint, there’s always room for the DS9308 Series, no matter how space-constrained your counters may be. Recessed LEDs are virtually invisible and automatically dim when not in use — reducing eye annoyance. The scanner’s ratcheting base offers four positions for convenient scanning, and its frictionless design won’t wear out.

• MAXIMUM DURABILITY AND RELIABILITY

Drops, dust and spills are no problem for the DS9308 Series. It’s built to handle 5 ft./1.5 m drops to concrete and 1,000 consecutive 1.5 ft./0.5 m tumbles. And thanks to IP52 sealing and a patent-pending opto-mechanical layout that includes a concealed beeper hole with elevated circuitry and cable connector, even the base is spill proof.

SPECIFICATIONS:

• DIMENSIONS:

5.7 in. H x 3.4 in. W x 3.3 in. D

14.5 cm. H x 8.6 cm. W x 8.3 cm. D

• COLOUR: Alpine White and Midnight Black

• DROP TOLERANCE: Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete.

• SCANNING TECHNOLOGY: Array Imager

• MINIMUM BAR WIDTH: 3 mil

• SENSOR RESOLUTION: 1280 x 800

• SCAN SPEED: 120.1 inch / sec

• WEIGHT: 11.2 oz. / 318.0 g

• SEALING: IP52

• DECODE CAPABILITY: 1D, 2D, PDF417
